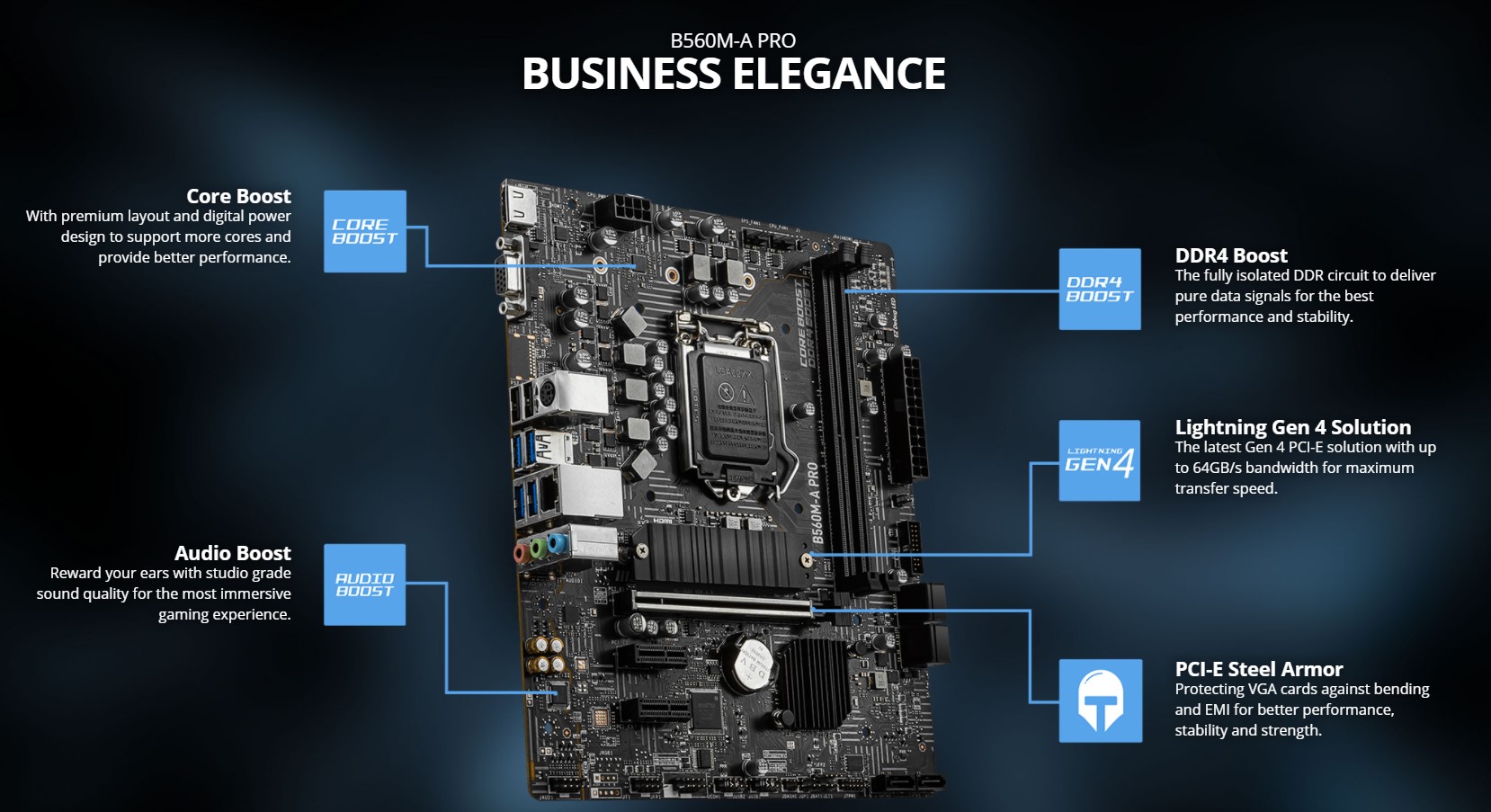

Mainboard MSI B560M-A PRO

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

B560M-A PRO

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5200 MHz
1DPC 2R Max speed up to 4700+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Khe cắm mở rộng

1x PCIe x16 slot (From CPU)

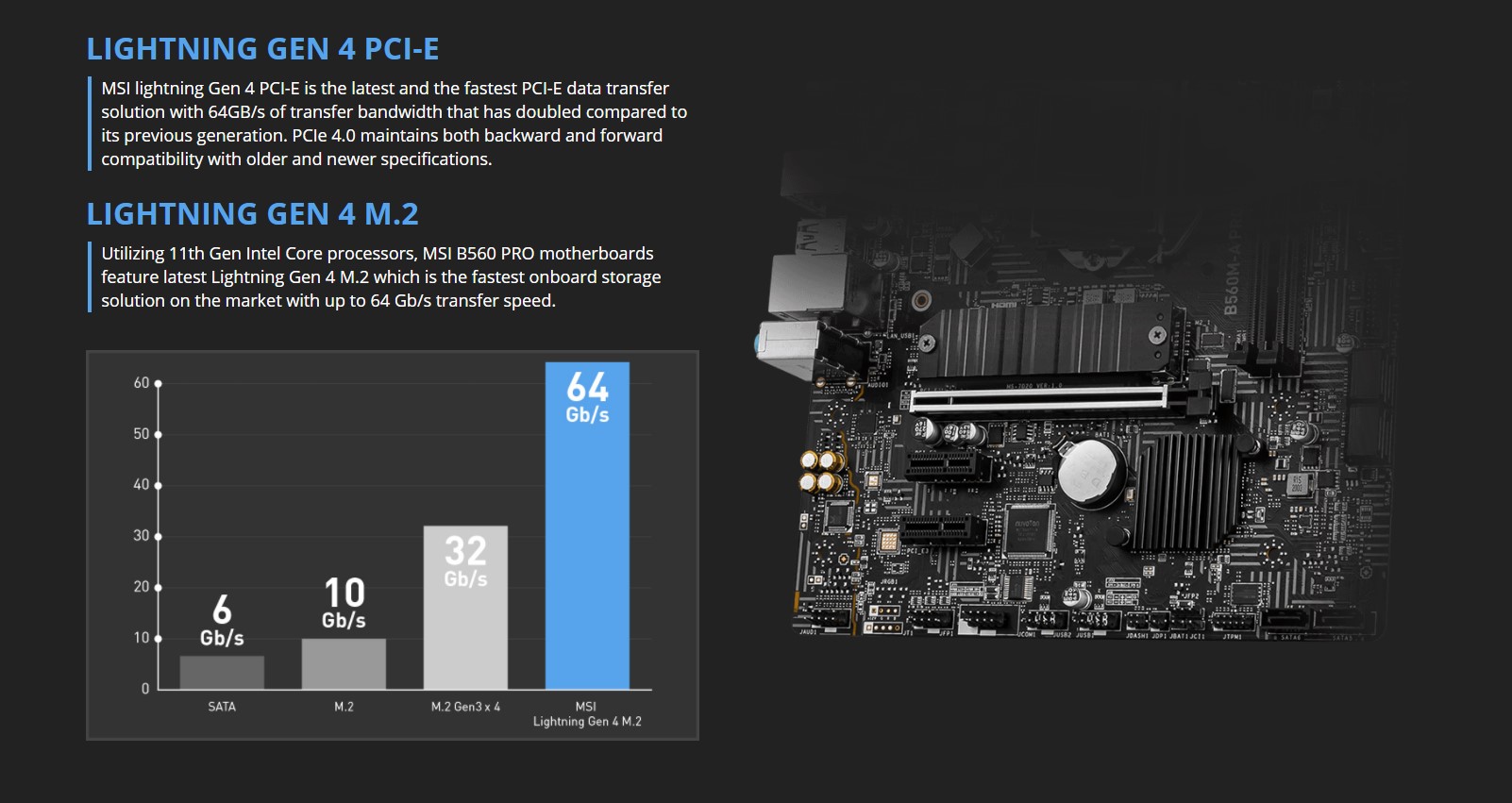

Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
2x PCIe 3.0 x1 slots (From B560 chpiset)

Ổ cứng hỗ trợ

6x SATA 6Gb/s ports (From B560 chipset)
1x M.2 slot (Key M)
Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)
Supports 2242/ 2260/ 2280 storage devices

Cổng kết nối (Internal)

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x M.2 slot (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning Controller Connector

Cổng kết nối (Back Panel)

1 x HDMI
1 x PS2
1 x LAN port
1 x Audio connector
2 x USB 2.0
1 x VGA
4 x USB 3.2 Gen 1 5Gbps Type A

LAN / Wireless

1x Realtek® 8125B 2.5Gbps LAN controller

Kích cỡ

mATX Form Factor
9.3 in. x 8.0 in. (23.6 cm x 20.2 cm)
